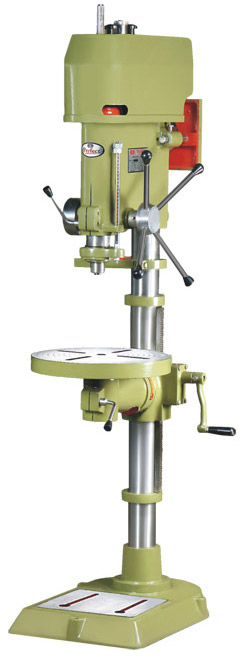

| Model : PRL - 25 |
|
|
| Model Code System |
|
|
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine |
|
|
| |
|
|
| Specification |
PRL - 25 |
|
| Tilting Working table |
Up to 360 |
|
| Drilling Capacity |
25 mm |
|
| Spindle nose to table distance |
645 mm |
|
| Distance form spindle nose to base distance |
1000 mm |
|
| Distance form Spindle conted to pillar surface (in mm) |
250 (Max) |
|
| Table Travel |
480 mm |
|
| Taper in spindle |
MT - 3 |
|
| Number of Speed |
8 |
|
| Range of Speed (RPM) |
70 to 2000 |
|
| Table Size (in mm) |
400 x 400 |
|
| Base size (m/c area in mm) |
425 x 640 |
|
| Overall base size (in mm) |
425 x 650 |
|
| Spindle Travel |
250 mm |
|
| Pillar Length |
1350 mm |
|
| Overall height with pully guard |
1780 mm |
|
| V-Belt Section |
B - 53" |
|
| Weight (approx.) |
230 kgs |
|
| Moter 1440 RPM 3 Phase 440 Volts |
1 H.P. |
|
| Shipping wooden case inner size L x W x H |
690 x 460 |
|
